Dugena 717
Ligne: 11.5'''
Jewels: 15/17
Power Reserve: 37 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1950-
Diameter: 26.6 mm
Height: 3.9 mm
Hands: 1.60 x 0.88 / 0.16 mm

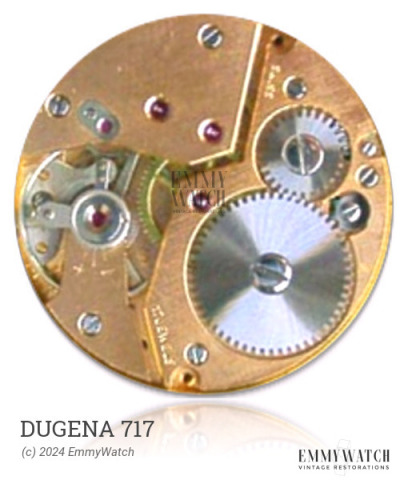

The Dugena 717 watch movement, used between 1950 and the present, features a Breguet hairspring and initially had two crown-wheel screws, later standardized to one. It is a manual wind movement with sub-seconds.
The Dugena 717 features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
