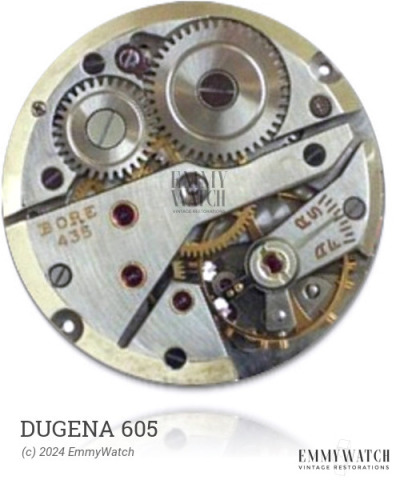

Dugena 605
Ligne: 15'''
Jewels: 15
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 33.85 mm
Height: 4.6 mm
Hands: 1.60 x 1.00 / 0.18 mm
The Dugena 605 watch movement is a hunter calibre movement that features a Breguet hairspring. It is similar to the 576 movement, although the specific differences are not known. This movement is designed for stem winding and setting, and includes a sub second function. The Dugena 605 movement was commonly used around the year 1955.
The Dugena 605 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.65 x 0.160 x 360 x 13.0 mm | Manual | Buy mainspring | |
| 1.60 x 0.160 x 400 x 13.0 mm | GR4633 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
