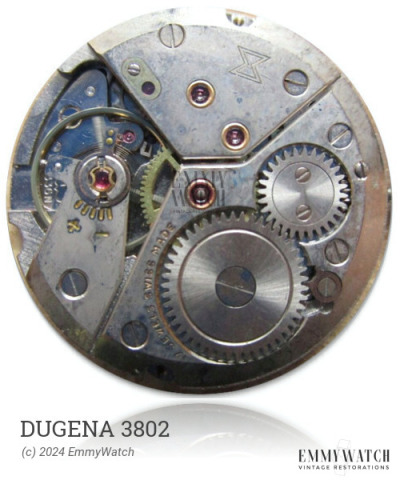

Dugena 3802
Ligne: 17'''
Jewels: 15
Power Reserve: 32 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 38.35 mm
Height: 4.15 mm
Hands: 1.80 x 1.00 / 0.28 mm
The Dugena 3802 watch movement belongs to a set of movements including the 1063, 1064, 1072, 1080, and 1121, differing only in bridge layouts, crown-wheel bearings, and clicks. It features stem winding and setting, a sub-second function, and the ability to set the watch from the right side. The movement was commonly used around 1945.
The Dugena 3802 features the following functions:
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.160 x 460 x 14.0 mm | GR5031 | Manual | Buy mainspring |
| 1.70 x 0.160 x 430 x 14.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
