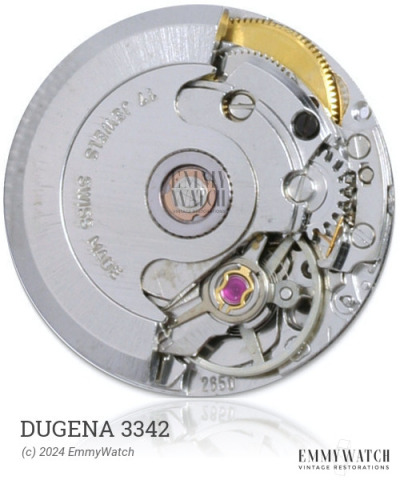

Dugena 3342
Ligne: 11.5'''
Jewels: 17/21
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Automatic
Period used: ~1955
Diameter: 26 mm
Height: 7.0 mm
Hands: 1.30 x 0.90 x 0.20 mm
The Dugena 3342 is a detached manual wind watch movement, and there is limited knowledge regarding its differences compared to the 1396N model. This movement incorporates several functions including automatic winding, sweep second hand, and a date display that can be set using a pusher located at 2 o'clock. The 1476N movement was predominantly utilized around the year 1955.
The Dugena 3342 features the following functions:
- Automatic Winding
- Date: Set by pusher at 2h
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 3605 | Ordinary/None | Buy staff |
| 5479 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.100 x 250 x 8.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
