Dugena 280
Ligne: 11.5'''
Jewels: 17
Power Reserve: 44 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1965
Diameter: 26 mm
Height: 3.6 mm
Hands: 1.50 x 0.90 x 0.21 mm

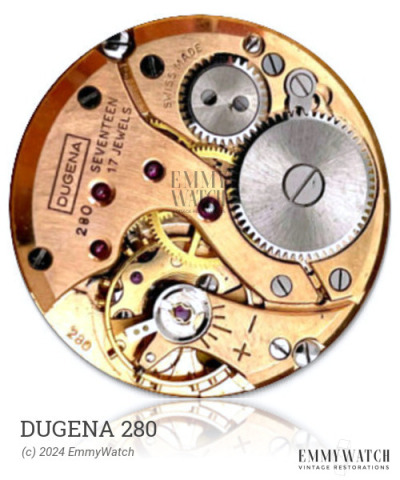

The Dugena 280 watch movement is a manual wind movement that is based on the manual wind calibre AS 1687/1688. It shares similarities with the 30.4 movement, although the specific differences between the two are not known. The movement includes a sweep second function and was commonly used in watches produced around 1965.
The Dugena 280 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.25 x 0.110 x 320 x 10.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
