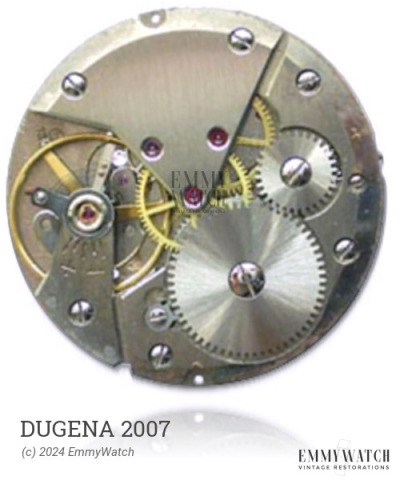

Dugena 2007
Ligne: 7.75'''
Jewels: 17
Power Reserve: 39 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 17.5 mm
Height: 4.15 mm
Hands: 1.20 x 0.70 x 0.21 mm
The Dugena 2007 is a manual wind watch movement that features a sweep second hand. It is part of the ETA 1170 series of movements, which includes the 1170, 1171, 1172, and 1173. The specific differences between these movements are not currently known. The Dugena 2007 movement was commonly used in watches manufactured around 1955.
The Dugena 2007 features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.080 x 220 x 7.0 mm | Manual | Buy mainspring | |
| 1.30 x 0.080 x 200 x 6.5 mm | GR3200 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
