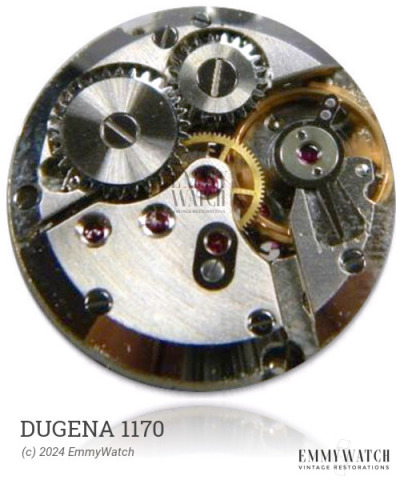

Dugena 1170
Ligne: 10.5'''
Jewels: 15
Power Reserve: 36 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1925
Diameter: 23.75 mm
Height: 4.3 mm
Hands: 1.30 x 0.80 / 0.24 mm
The Dugena 1170 is a manual wind watch movement from around 1925. It features a sub second function and is part of a series of movements with various bridge layouts. It is listed with the designation AS 340 in old data sheets, but the differences between the 302, 303, 311, 313, 323, 324, 328, 329, 333, 340, 342, 344, 361, 362, 365, 371, 383, 396, 473, 546, 549, 569, 585, 595, 603, 621, 629, 636, 694, 709, 714, 717, 720, 731, 775, 790, 803, 825, 915, and 951 are not known.
The Dugena 1170 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.50 x 0.105 x 280 x 9.0 mm | GR41332 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
