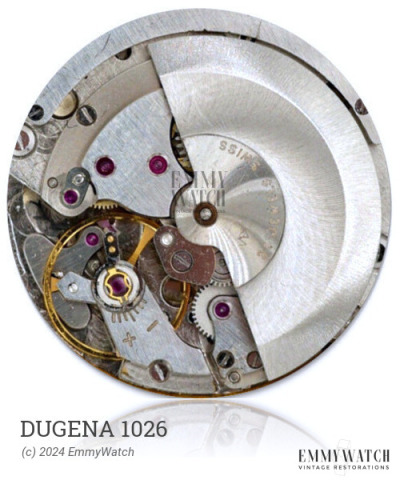

Dugena 1026
Ligne: 8.75'''
Jewels: 17/21
Lift Angle: 53°
Power Reserve: 43 hrs
Frequency: 21600 vph
Type: Automatic
Period used: 1972-
Diameter: 19.7 mm
Height: 5.4 mm
Hands: 1.30 x 0.80 x 0.20 mm
The Dugena 1026 is a mechanical watch movement introduced in 1972. It features an indirectly driven minute hand, enabling a large balance wheel and a low overall profile. This movement incorporates several functions, including automatic winding, sweep seconds, and shock protection. It has been used in watches since its introduction in 1972.
The Dugena 1026 features the following functions:
- Automatic Winding
- Shock Protection
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.083 x 315 x 8.0 mm | GR2874X | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
Documents
Parts Listing
