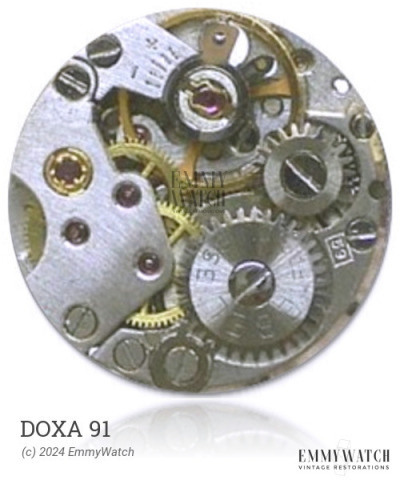

Doxa 91
Ligne: 10.5'''
Jewels: 17
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Diameter: 23.7 mm
Height: 4.15 mm
Hands: 1.50 x 0.90 x 0.21 mm
Base: ETA 1256
The Doxa 91 watch movement, also known as the 45B, is a mechanical movement with manual winding. It features a sweep second hand and automatic function. This movement was commonly used during the 1950s timeframe. No further information is available regarding the specific differences between the 45 and 45B movements.
The Doxa 91 features the following functions:
- Automatic Winding
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.100 x 300 x 9.5 mm | GR4122X | Auto | Buy mainspring |
| 1.50 x 0.110 x 290 x 9.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
