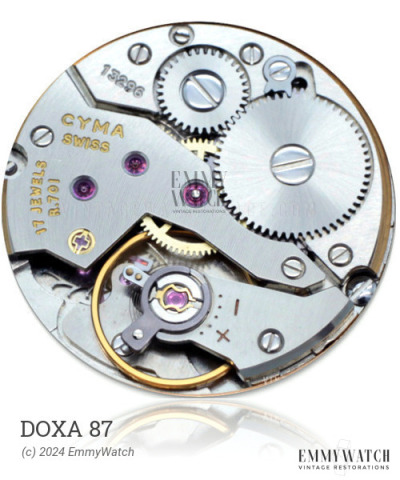

Doxa 87
Ligne: 11.5'''
Jewels: 7/17
Lift Angle: 52°
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 25.9 mm
Height: 4.9 mm
Hands: 1.30 x 0.85 x 0.20 mm
The Doxa 87 watch movement is a mechanical movement characterized by a manual wind mechanism, sweep seconds function, and the inclusion of Incabloc Shock Protection. It is similar to the A. Schild 1795 movement, but the specific differences between the two are unknown. The Doxa 87 movement was commonly used in watches produced around the 1960s.
The Doxa 87 features the following functions:
- Incabloc Shock Protection
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.100 x 300 x 9.0 mm | GR4486 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More | |||
| See More |
Documents
Parts Listing
