Doxa 3
Ligne: 17'''
Jewels: 15
Power Reserve: 32 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1930
Diameter: 37.8 mm
Height: 3.85 mm
Hands: 1.75 x 1.10 / 0.22 mm

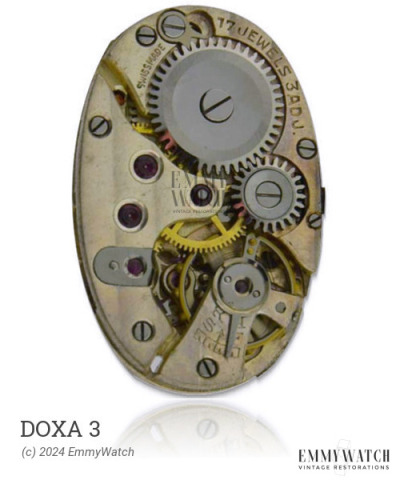

The Doxa 3 is a mechanical watch movement featuring a hunter calibre and a Breguet hairspring. While the differences between the 704 and 706 are not known, the 706 supports functions such as stem winding and setting, as well as a sub-second display. This movement was commonly used in watches around the period of 1930.
The Doxa 3 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.190 x 430 x 15.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
