Cyma Tavannes 814
(Cyma, Tavannes)
Ligne: 8 x 10'''
Jewels: 17
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Size: 18.05 x 22.56 mm
Hands: 1.20 x 0.60 mm

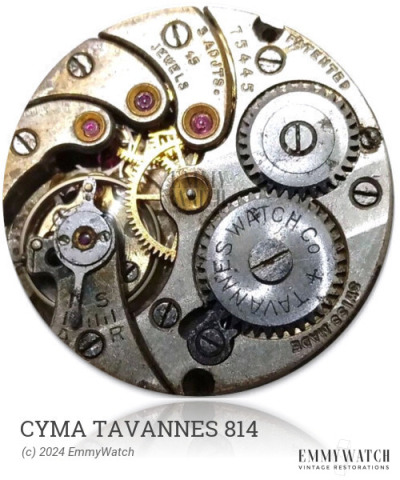

The Cyma Tavannes 814 is a manual wind mechanical watch movement that features a sub-second function. It was produced around the year 1950. Differences between the Cyma Tavannes 814 and its predecessors, the 155 and 165, are not currently known.
The Cyma Tavannes 814 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.80 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
