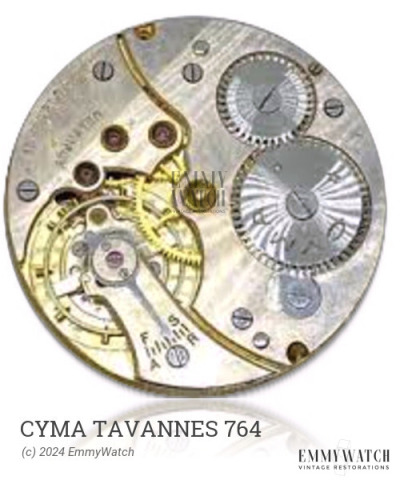

Cyma Tavannes 764
(Cyma, Tavannes)
Jewels: 21
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Size: 19.3 x 23.8 mm
Height: 3.9 mm
Hands: 1.14 x 0.66 / 0.20 mm
The Cyma Tavannes 764 is a manual wind watch movement that features a sub-second function. It was primarily used during the approximate period of 1955.
The Cyma Tavannes 764 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| BALANCE COMPLETE | 6815/ELG | 6815/ELG | Buy part |
| ESCAPE WHEEL C/C | 6834/ELG | 6834/ELG | Buy part |
| JEWEL, U/L 3/4TH/ESC ENDSTONE | 6266/ELG | 98-626/ELG | Buy part |
| JEWEL, UP/LOW PALLET UNSET | 6138/ELG | 112-571/ELG | Buy part |
| MAINSPRING, .0036 | 6811/ELG .0036 | Buy part | |
| MINUTE WHEEL | 5286/ELG | 289-532/ELG | Buy part |
| RATCHET WHEEL | 6845C10/ELG | 290-713/ELG | Buy part |
| RIGHT PALLET STONE | 6819/ELG | Buy part | |
| RIGHT PALLET STONE | 6820/ELG | Buy part | |
| ROLLER, 1 PIECE DOUBLE W/PIN | 6829/ELG | 6829/ELG | Buy part |
| SCREW, U/L ESC/3/4 ENDSTONE | 6797/ELG | 190-711/ELG | Buy part |
| STEM (WINDING ARBOR) | 6814/ELG | 3-711/ELG | Buy part |
