Cyma Tavannes 586
(Cyma, Tavannes)
Ligne: 5.75 x 7.75'''
Jewels: 17
Lift Angle: 60°
Power Reserve: 40 hrs
Frequency: 19800 vph
Type: Manual Wind
Period used: 1949-1970
Size: 13.8 x 17.3 mm
Height: 3.4 mm
Hands: 1.05 x 0.60 mm

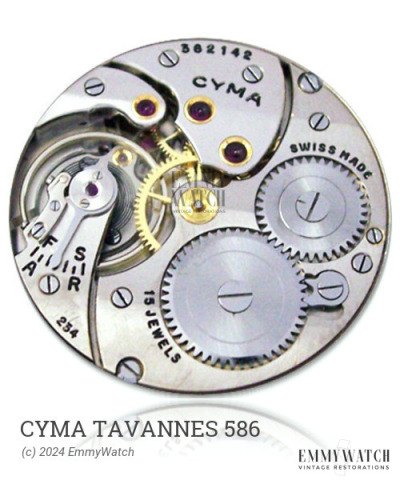

The Cyma Tavannes 586 watch movement is a manual wind movement that was produced between 1949 and 1970, with a total production of 108,000 units.
The Cyma Tavannes 586 features the following functions:
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.15 x 0.080 x 7.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
