Cyma Tavannes 574
(Cyma, Tavannes)
Ligne: 18.5'''
Jewels: 15/17
Lift Angle: 43°
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 41.7 mm
Height: 4.7 mm
Hands: 2.00 x 1.15 / 0.28 mm

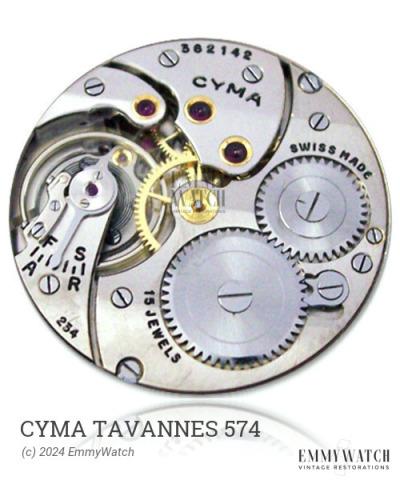

The Cyma Tavannes 574 is a mechanical watch movement, featuring an open face calibre design. It incorporates varying bridge shapes and is likely equipped with a left-handed ratchet-wheel screw. The movement enables stem winding and setting, includes sub-seconds functionality, and features an adjustable stud holder. It was primarily utilized during the approximate period of 1960.
The Cyma Tavannes 574 features the following functions:
- Adjustable Stud Holder
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 5262 | Ordinary/None | Buy staff |
| 5262 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.00 x 0.200 x 475 x 16.5 mm | Manual | Buy mainspring | |
| 1.90 x 0.210 x 520 x 16.5 mm | GR5676 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
