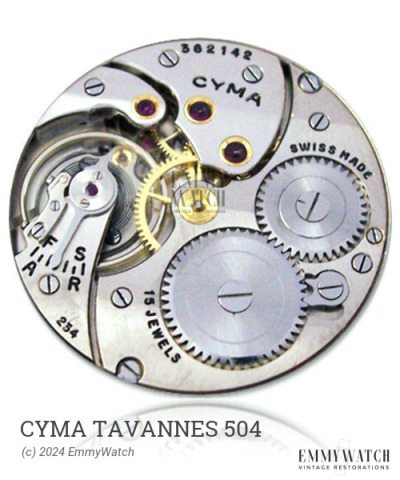

Cyma Tavannes 504
(Cyma, Tavannes)
Ligne: 12'''
Jewels: 17
Lift Angle: 50°
Power Reserve: 40 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: 1967-1968
Diameter: 27 mm
Height: 5.7 mm
Hands: 1.90 x 1.05 x 0.22 mm
The Cyma Tavannes 504 is a manual-wind chronograph movement with a period of usage from 1967-1968. It is a simplified version of the 860 movement. This movement features a single pusher for start-stop-reset functionality of the 60-second chronograph. It also has an adjustable stud holder, shock protection, and a sweep seconds hand. 124,000 units of this movement were produced during its period of usage.
The Cyma Tavannes 504 features the following functions:
- Adjustable Stud Holder
- Manual-wind chronograph, 60s, start-stop-reset by single pusher
- Shock Protection
- Sweep Seconds
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.130 x 400 x 12.0 mm | GR3342 | Manual | Buy mainspring |
| 1.30 x 0.115 x 420 x 10.5 mm | GR33001 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
