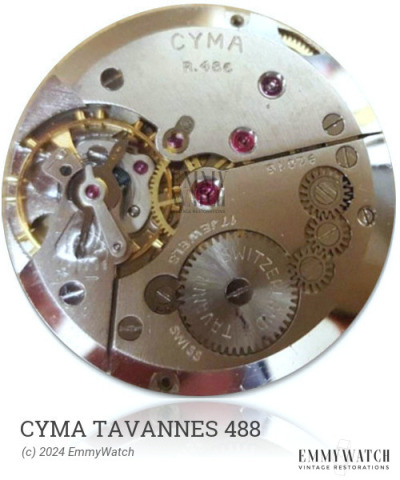

Cyma Tavannes 488
(Cyma, Tavannes)
Ligne: 8.75'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 45 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1965
Diameter: 19.4 mm
Height: 3.45 mm
Hands: 1.20 x 0.65 / 0.18 mm
The Cyma Tavannes 488 watch movement is part of a family of movements created with various balances and calibre designations. While catalogues may differ regarding the exact differences, these variances are minimal enough to allow for the interchangeability of parts. Additionally, it is noted that there are similar-looking calibres with a height of 3.0mm. Functionally, the Cyma Tavannes 488 movement is manual wind and features a sub-second function. This movement was commonly used around 1965.
The Cyma Tavannes 488 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring | |
| 1.60 x 0.080 x 260 x 7.0 mm | GR4446 | Manual | Buy mainspring |
| 1.60 x 0.080 x 240 x 7.0 mm | GR4445 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More | |||
| See More |
Documents
Parts Listing
