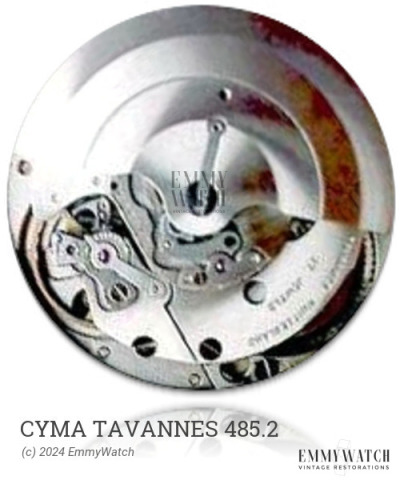

Cyma Tavannes 485.2
(Cyma, Tavannes)
Ligne: 11.5'''
Jewels: 21/25
Lift Angle: 52°
Power Reserve: 40 hrs
Frequency: 21600 vph
Type: Automatic
Period used: ~1965
Diameter: 26 mm
Height: 4.8 mm
Hands: 1.50 x 0.90 x 0.21 mm
Base: A. Schild 1687
The Cyma Tavannes 485.2 watch movement is an automatic mechanism that is a collaboration between Doxa, Eberhard, Favre-Leuba, Girard-Perregaux, and Zodiac. It is based on the manual wind calibre AS 1687/1688. The movement features functions such as automatic winding, sweep seconds, and Incabloc Shock Protection. It was primarily used during the period around 1965.
The Cyma Tavannes 485.2 features the following functions:
- Automatic Winding
- Incabloc Shock Protection
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.10 x 0.110 x 10.0 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents

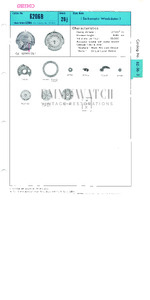

Parts Listing
