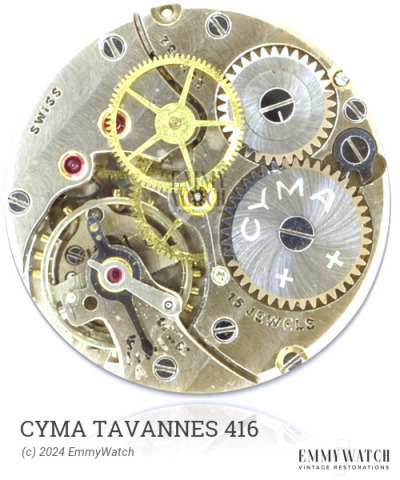

Cyma Tavannes 416
(Cyma, Tavannes)
Ligne: 10.5'''
Jewels: 15
Power Reserve: 48 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 23.7 mm
Height: 3.9 mm
Hands: 1.30 x 0.85 / 0.18 mm
The Cyma Tavannes 416 is a manual wind watch movement with a sub-second function. It was used in watches manufactured around 1945. The specific differences between the 414, 415, 418, and 419 models are unknown.
The Cyma Tavannes 416 features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.090 x 340 x 9.5 mm | GR4856 | Manual | Buy mainspring |
| 1.70 x 0.090 x 320 x 9.0 mm | GR4855 | Manual | Buy mainspring |
| 1.70 x 0.100 x 300 x 9.0 mm | GR4879 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
