Cyma Tavannes 404KA
(Cyma, Tavannes)
Ligne: 8 x 9'''
Jewels: 17
Power Reserve: 44 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1935
Size: 18.6 x 20.8 mm
Height: 3.6 mm
Hands: 1.20 x 0.65 / 0.15 mm

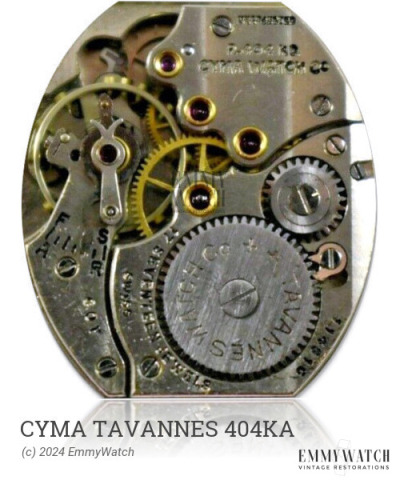

The Cyma Tavannes 404KA mechanical watch movement is characterized by its bimetallic screw balance. The specific differences between the 865, 868, 870, and 874 variations are not known. However, the 871 variation features an indirect sweep second. The Cyma Tavannes 404KA movement includes the functions of manual winding, subseconds, and was typically utilized around the period of 1935.
The Cyma Tavannes 404KA features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.095 x 280 x 8.5 mm | GR4111 | Manual | Buy mainspring |
| 1.50 x 0.090 x 280 x 8.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
