Cortebert 530
Ligne: 10.5'''
Jewels: 1/17
Lift Angle: 52°
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1970
Diameter: 23.7 mm
Height: 3.9 mm
Hands: 1.80 x 1.30 x 0.20 mm
Base: Brac 1013

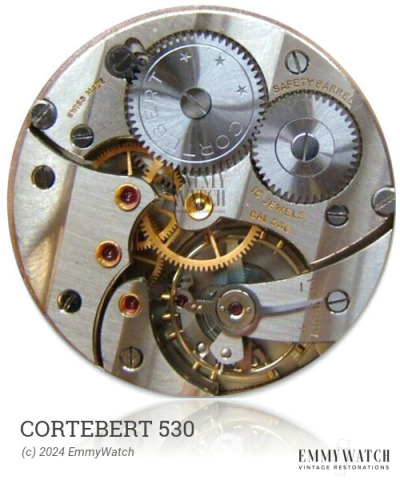

The Cortebert 530 is a mechanical watch movement featuring a pin-lever escapement and a stem mechanism without a setting-lever spring. It is equipped with a strangely arranged train and hand gear that are driven separately by the barrel. The movement is manually wound and includes a sweep second hand. It utilizes a pin lever and was in use during the approximate period of 1970.
The Cortebert 530 features the following functions:
- Manual Winding
- Pin lever
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 5200 | Ordinary/None | Buy staff |
| 5199 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.105 x 320 x 9.5 mm | GR3681 | Manual | Buy mainspring |
| 1.40 x 0.105 x 300 x 9.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|

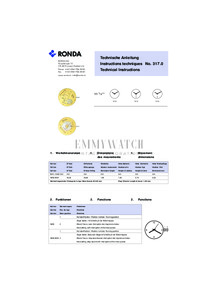

Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
