Cortebert 518
Jewels: 21/23
Power Reserve: 39 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1913
Diameter: 41.15 mm
Height: 4.65 mm
Hands: 1.65 x 1.00 x 0.25 mm

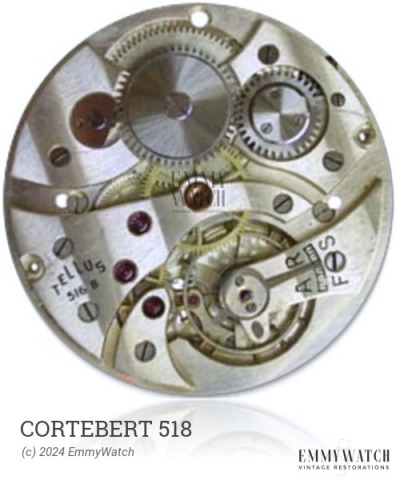

The Cortebert 518 watch movement is an open face calibre with a bimetallic screw balance and Breguet hairspring. Early samples of this movement have the option of a Geneva stopwork, with a ratchet wheel mounted using two screws. The movement features stem wind and set functionality, as well as a sub-second display. It was used around the year 1913.
The Cortebert 518 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.75 x 0.150 x 15.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
