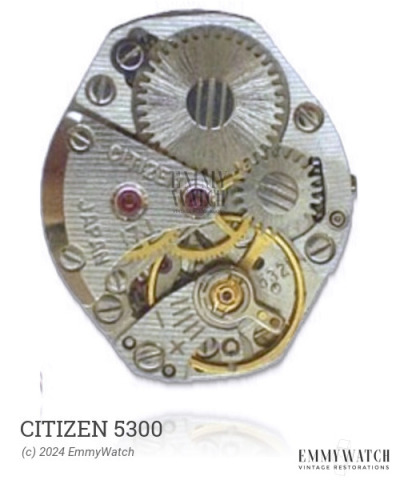

Citizen 5300
Ligne: 18'''
Jewels: 15
Power Reserve: 33 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1920
Diameter: 40.85 mm
Height: 5.6 mm
Hands: 1.85 x 1.10 / 0.27 mm
The Citizen 5300 watch movement is an open-face calibre movement. It is similar to the 530-532 and 542 movements with the exception of varying bridge layouts. This movement features functions such as stem winding and setting, as well as a sub-second display. It was commonly used during the period around 1920.
The Citizen 5300 features the following functions:
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.20 x 0.200 x 520 x 16.0 mm | GR6279 | Manual | Buy mainspring |
| 2.10 x 0.200 x 460 x 16.0 mm | GR6095 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
