Citizen 1132
Ligne: 12.75'''
Jewels: 17
Lift Angle: 50°
Power Reserve: 42 hrs
Frequency: 19800 vph
Type: Automatic
Period used: 1949-1952
Diameter: 28.5 mm
Height: 4.8 mm
Hands: 1.40 x 0.65 / 0.15 mm
The Citizen 1132 watch movement, also known as the 28.10T1 RA PC RG, was produced from 1949 to 1952 and belongs to the 28.10 and 30.10 family. It is a chronometer movement with an excenter regulator. This movement features an automatic (bumper) winding system, a sub-second hand, and Incabloc Shock Protection. The Citizen 1132 movement was produced in a large quantity, with over 1,300,000 units made between 1943 and 1955.
The Citizen 1132 features the following functions:
- Automatic (bumper)
- Incabloc Shock Protection
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.10 x 0.095 x 300 x 9.0 mm | GR2605X | Auto | Buy mainspring |
| 1.10 x 0.100 x 250 x 8.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents

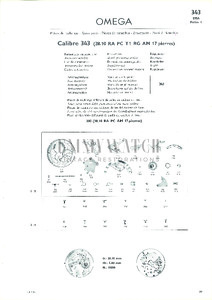

Parts Listing
