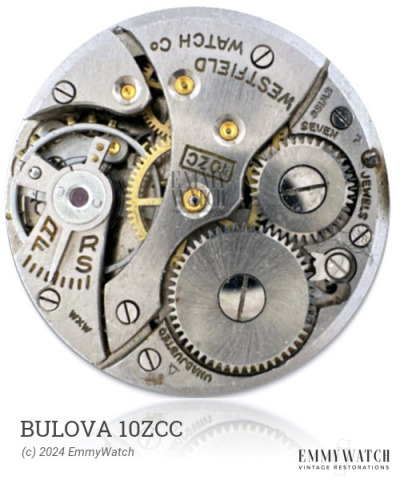

Bulova 10ZCC
Ligne: 8.75'''
Jewels: 17
Lift Angle: 52°
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Diameter: 19.7 mm
Height: 3.5 mm
Hands: 1.20 x 0.70 x 0.20 mm
The Bulova 10ZCC is a manual wind mechanical watch movement that features a sweep second hand, a calendar function that can be set by changing the 21-24 hour, and is commonly used during the period of approximately 1965.
The Bulova 10ZCC features the following functions:
- Calendar
- Date: set by changing 21-24h
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.090 x 286 x 8.5 mm | Manual | Buy mainspring | |
| 1.35 x 0.095 x 280 x 8.0 mm | GR3503 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| CENTER PIPE | M/1799 | 163/1/ETA 2490 | Buy part |
| GIB/BOLT INCA SHOCK .15 THICK | 400/774 | 180.15/INCA #12 | Buy part |
| JEWEL, INCA BALANCE 135X50X09 | 400/11 | 111.09/INCA#8 | Buy part |
| JEWEL, UPPER CAP INCA 120X18 | 400/8 | 122.11/INCA #6 | Buy part |
| PALLET ARBOR | 72S/11P | 714/ETA 2490 | Buy part |
| ROLLER 155X75X33 | 82S/143R | 730/36 | Buy part |
| ROLLER 155X75X33 | 82S/9R | Buy part | |
| SCREW, INCA SHOCK 18X60 | 400/3 | 160.11/INCA #15 | Buy part |
| SCREW, STAFF, GENUINE W/OR W/O | 723/1121 | Buy part | |
| SHOCK SPRING, UPPER INCABLOC | 400/4 | 170.03/INCA #1 | Buy part |
| SHOCK UNIT, LOWER INCA | 400/32 | 100.20.9 | Buy part |
| STAFF, INCA | 100/2179 | Buy part | |
| STEM, GENUINE TAP 10 | 401/649 | /ETA 2493 | Buy part |
| STEM, TAP 10 | 200/1622F | Buy part | |
| UPPER UNIT D262 H9 | 400/1491 | 103.21.262.9 | Buy part |
