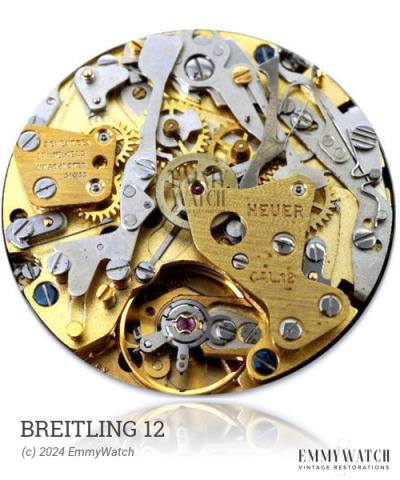

Breitling 12
Ligne: 13.75'''
Jewels: 17
Power Reserve: 44 hrs
Frequency: 28800 vph
Type: Automatic
Period used: 1973-1977
Diameter: 31 mm
Height: 8.0 mm
Hands: 2.30 x 1.60 x 1.05 x 0.25 / 0.20 mm
Base: Lemania 1343
The Breitling 12 watch movement was produced between 1973 and 1977. It is an automatic chronograph movement that features center-minute and -second sub-dials. It also includes a sub-second function and a quickset date complication. Additionally, the movement incorporates an automatic winding system.
The Breitling 12 features the following functions:
- Automatic chronograph, 60s, 60min, cam switched, center-minute and -second
- Automatic Winding
- Calendar with quickset
- Chronograph Movement
- Date: quickset
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.05 x 0.100 x 12.0 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
