Brac 207
Ligne: 6.75 x 11'''
Jewels: 17
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1930
Size: 15.3 x 24.9 mm
Hands: 1.20 x 0.78 mm

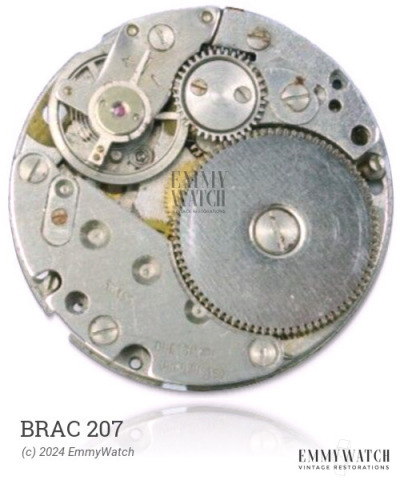

The Brac 207 watch movement, produced circa 1930, features a bimetallic screw balance and a winding pinion equipped with helical gearing. Similar to its predecessor, the 064 movement, the 074 movement includes an indirect sweep second function. This movement allows for manual winding and accurate timekeeping with a sweeping second hand.
The Brac 207 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.100 x 315 x 9.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
