Brac 204
Ligne: 10.5'''
Jewels: 15
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 23.7 mm
Height: 4.0 mm
Hands: 1.30 x 0.60 / 0.21 mm

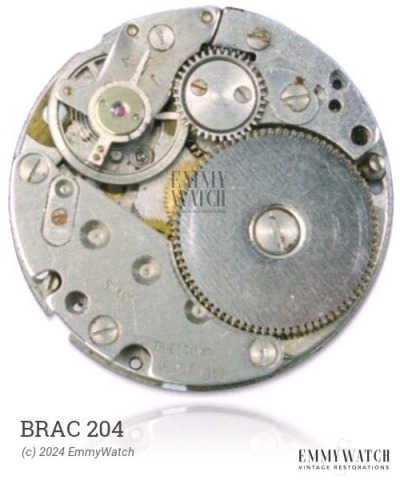

The Brac 204 watch movement features various bridge shapes. Differences between movements 190 through 209 are not known. This movement is manually wound and includes a sub-second function. It was commonly used around 1945.
The Brac 204 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.80 x 0.100 x 350 x 10.0 mm | Manual | Buy mainspring | |
| 1.80 x 0.100 x 320 x 9.0 mm | GR5254 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
