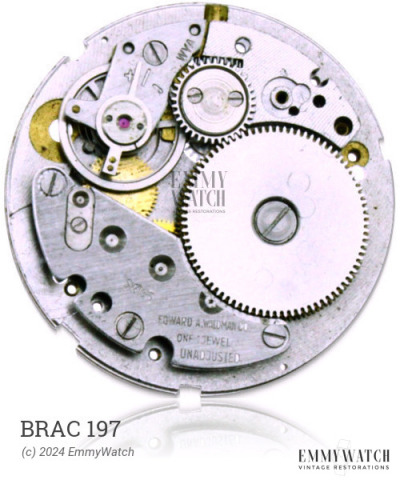

Brac 197
Ligne: 10.5'''
Jewels: 15
Power Reserve: 39 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 23.3 mm
Height: 4.0 mm
Hands: 1.22 x 0.80 / 0.18 mm
The Brac 197 watch movement is part of a series of movements designated by catalog numbers 87 through 89. It shares similarities with the movements in the 70 through 85 and 100 through 109 series. However, the specific differences between these series are not known. The Brac 197 movement is a manual wind movement that includes a sub-second function.
The Brac 197 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.100 x 300 x 9.0 mm | GR4486 | Manual | Buy mainspring |
| 1.60 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.40 x 0.110 x 260 x 8.0 mm | GR3696 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
