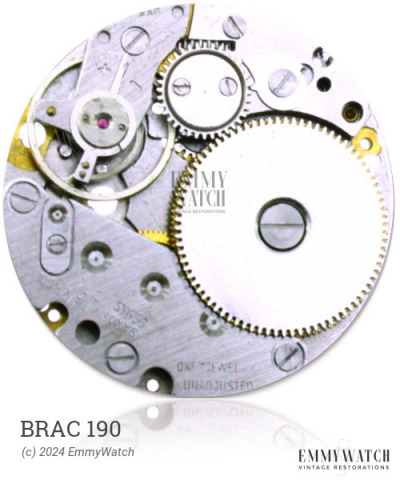

Brac 190
Jewels: 9
Power Reserve: 34 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1942-1943
Diameter: 43.1 mm
Height: 6.65 mm
Hands: 1.65 x 0.92 / 0.25 mm
The Brac 190 watch movement, produced from 1942-1943 with a total of 79,000 units, features an open face calibre known as model 7. It is equipped with a bimetallic screw balance and a Breguet hairspring for enhanced accuracy. The lever position enables both winding and setting functions, which can also be achieved using the stem. The escapement of the movement has been modified. Additionally, the movement includes a stem wind mechanism that can be switched between using the crown or lever, as well as a sub-second function.
The Brac 190 features the following functions:
- Stem wind, switching by crown or lever
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.64 x 0.190 x 560 x 16.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| STAFF, 16S P14 | 22BB/7C | 5968/ELG | Buy part |
