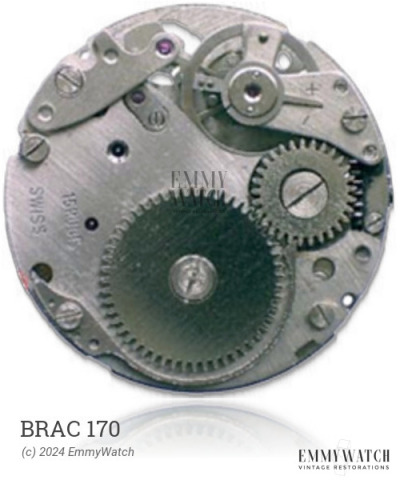

Brac 170
Ligne: 10.5'''
Jewels: 17/21
Power Reserve: 44 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1965
Diameter: 23.7 mm
Height: 2.8 mm
Hands: 1.30 x 0.70 / 0.22 mm
Base: A. Schild 1758
The Brac 170 watch movement belongs to a category of equivalent movements, which share a bridge layout and special balance. Alongside the Cyma 701, Girard-Perregaux 26, Synchron 35, and Zodiac 52, the Brac 170 exhibits similar characteristics. The movement was designed for manual winding and features a sub-second function. Its period of use dates back to approximately 1965.
The Brac 170 features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| GIB/BOLT INCA SHOCK .15 THICK | 400/774 | 180.15/INCA #12 | Buy part |
| JEWEL, INCA BALANCE 135X50X09 | 400/11 | 111.09/INCA#8 | Buy part |
| JEWEL, UPPER CAP INCA 120X18 | 400/8 | 122.11/INCA #6 | Buy part |
| LOWER SHOCK UNIT | 400/1716 | 119.20.09 | Buy part |
| SHOCK SPRING, LOWER 223 X 155 | 400/811 | 173.03/INC | Buy part |
| SHOCK SPRING, UPPER INCABLOC | 400/4 | 170.03/INCA #1 | Buy part |
| UPPER INCABLOC UNIT 310X09 | 400/1795 | 100.21.310.09 | Buy part |
