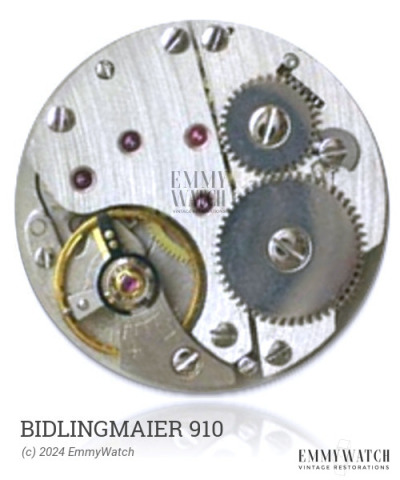

Bidlingmaier 910
(Bifora)
Ligne: 12'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Diameter: 27.02 mm
Height: 4.5 mm
Hands: 1.50 x 0.90 / 0.22 mm
The Bidlingmaier 910 watch movement is a manual wind movement with a sub second function. It was primarily used during the period of approximately 1950.
The Bidlingmaier 910 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.130 x 320 x 10.5 mm | GR4008 | Manual | Buy mainspring |
| 1.45 x 0.130 x 300 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
