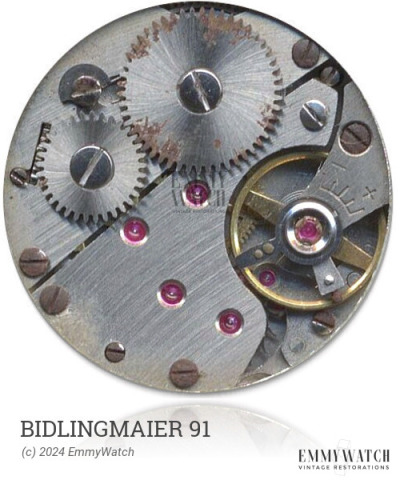

Bidlingmaier 91
(Bifora)
Jewels: 17
Power Reserve: 34 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1908-1916
Diameter: 39.75 mm
Height: 5.0 mm
Hands: 1.50 x 0.92 / 0.26 mm
The Bidlingmaier 91 watch movement was produced from 1908 to 1916, with a total of 20,400 units manufactured during this period. It features a hunter calibre, known as model 2. The movement incorporates a bimetallic screw balance and utilizes a Breguet hairspring. Additionally, it is equipped with a negative stem mechanism, which allows for an adjustable switching point. The movement offers the functions of stem wind and set, as well as a sub-second display.
The Bidlingmaier 91 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.05 x 0.200 x 520 x 15.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
