Bidlingmaier 51
(Bifora)
Ligne: 17.5'''
Jewels: 15
Power Reserve: 33 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1930
Diameter: 39.7 mm
Height: 5.2 mm
Hands: 2.05 x 1.15 / 0.26 mm

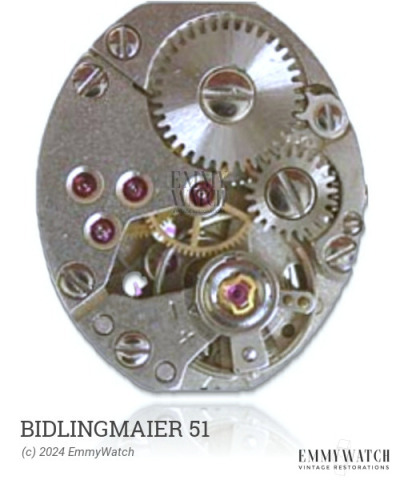

The Bidlingmaier 51 watch movement, a hunter calibre, features a Breguet hairspring. The crown mechanism has been modified during its production period. The movement functions include stem winding and setting, as well as a sub second feature. This movement was commonly used around the 1930s.
The Bidlingmaier 51 features the following functions:
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.80 x 0.190 x 450 x 15.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
