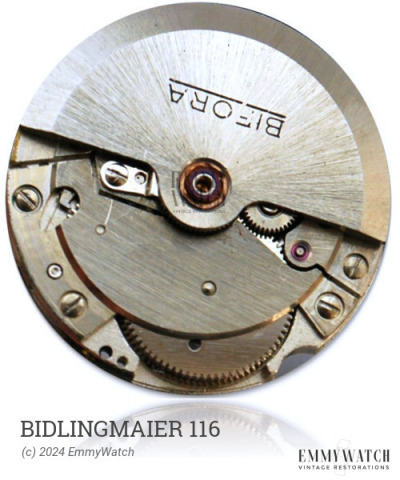

Bidlingmaier 116
(Bifora)
Ligne: 11.5 x 11.5'''
Jewels: 17
Power Reserve: 34 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1948-
Size: 25.5 x 26 mm
Height: 6.2 mm
Hands: 1.22 x 0.79 x 0.25 mm
Base: Gruen 460SS
The Bidlingmaier 116 watch movement, introduced in 1948, is equipped with a Breguet hairspring. It is notable for being the first automatic movement produced by Gruen. The movement features an automatic (bumper) winding system and a sweep second function. The Bidlingmaier 116 movement was utilized in watches during the period 1948-.
The Bidlingmaier 116 features the following functions:
- Automatic (bumper)
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.085 x 240 x 7.5 mm | GR3930X | Auto | Buy mainspring |
| 1.45 x 0.085 x 240 x 7.0 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| COUNTER CATCH SPRING | A/766 | A/766 | Buy part |
| MAINSPRING 1.45-.085-240 7 | MSS-WA12 | GR 3930-X | Buy part |
| PALLET ARBOR | 72S/169P | Buy part | |
| ROLLER 180X75X36 | 82S/40R | 730/31 | Buy part |
| ROLLER, INCABLOC 180X75X36 | 82S/147R | 730/AS 1649 | Buy part |
| STAFF, REG/INCA | 100/425A | Buy part | |
| STEM | 200/408F | Buy part |
