Bettlach 8803
(EB)
Ligne: 11.5'''
Jewels: 15/17/19/21
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 26 mm
Height: 4.15 mm
Hands: 1.50 x 0.90 x 0.21 mm

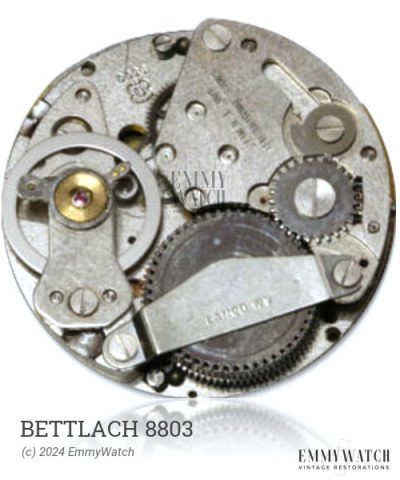

The Bettlach 8803 is a mechanical watch movement introduced around 1955. It is a manual wind movement with a sweep second function. The specific differences between the Bettlach 8803 and other similar movements, such as the 1081, 1083, 1085, 1087, 1089, 1095, 1097, 1099, 1141, 1143, 1145, 1147, 1149, 1155, 1175, 1177, 1179, 1181, 1183, and 1287, are not known.
The Bettlach 8803 features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.110 x 290 x 9.5 mm | Manual | Buy mainspring | |
| 1.50 x 0.105 x 300 x 9.0 mm | GR4134 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
