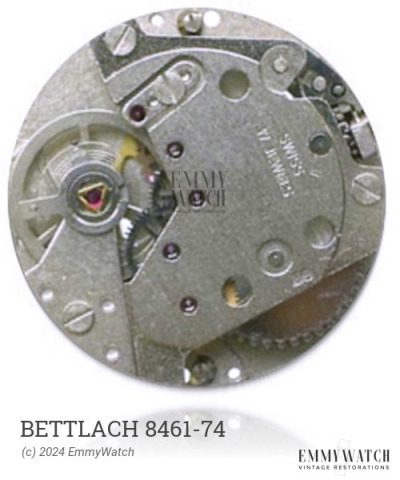

Bettlach 8461-74
(EB)
Ligne: 10.5'''
Jewels: 1/5/17
Lift Angle: 56°
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1970
Diameter: 23.3 mm
Height: 5.15 mm
Hands: 1.50 x 0.70 mm
The Bettlach 8461-74 watch movement features a pin-lever escapement and offers manual winding functionality. It includes a day and date display, with the date set by changing the time to 21:30-24h. The movement is equipped with KIF Shock Protection and does not have a second hand. This model is a calendar movement commonly utilized around the 1970s.
The Bettlach 8461-74 features the following functions:
- Calendar
- Date: set by changing 21:30-24h
- Day
- Day and Date Display
- KIF Shock Protection
- Manual Winding
- Without Second Hand
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.120 x 320 x 9.5 mm | GR41761 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
