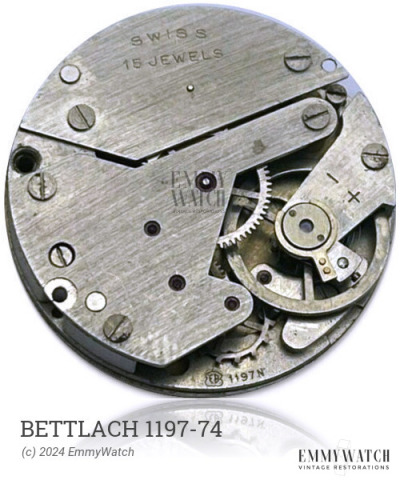

The Bettlach 1197-74 watch movement, produced from 1937 to 1970, had a total production of over 3.5 million units. Various chronograph mechanisms were used, often with interchangeable parts, leading to some series being manufactured with components from different calibers. The Bettlach 1197-74 had minor differences compared to the 181 model, allowing for interchangeable modified parts. Its functions included a 60-second manual-wind chronograph, with a 30 or 45-minute cam-switched mechanism. Other features comprised a sub-second hand, a tag at the 10 o'clock position, a date hand with a pusher at 9 o'clock, a month function operated by a pusher at 2:30 o'clock, and a moon phase display controlled by a pusher at 8 o'clock. The Bettlach 1197-74 movement can be classified as a chronograph with additional calendar and moon-phase display capabilities.
The Bettlach 1197-74 features the following functions:
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.145 x 380 x 12.0 mm | GR3530 | Manual | Buy mainspring |
| 1.35 x 0.140 x 360 x 12.0 mm | Manual | Buy mainspring |
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
