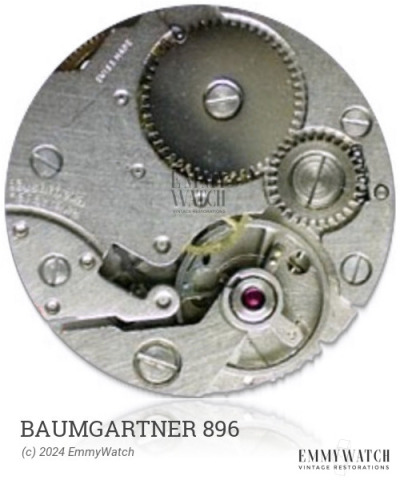

Baumgartner 896
Ligne: 8.75 x 12'''
Jewels: 17
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Size: 20 x 26 mm
Height: 5.25 mm
Hands: 1.45 x 0.85 x 0.18 mm
The Baumgartner 896 watch movement features a ratchet mechanism on the dial side and a crown mechanism with a rocker bar. It is a manual wind movement with a sweep second function. The movement was used during the approximate period of 1955.
The Baumgartner 896 features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.110 x 260 x 8.0 mm | GR4904 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
