Baumgartner 670
Ligne: 8.75'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 45 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1965
Diameter: 19.7 mm
Height: 3.45 mm
Hands: 1.20 x 0.65 / 0.18 mm

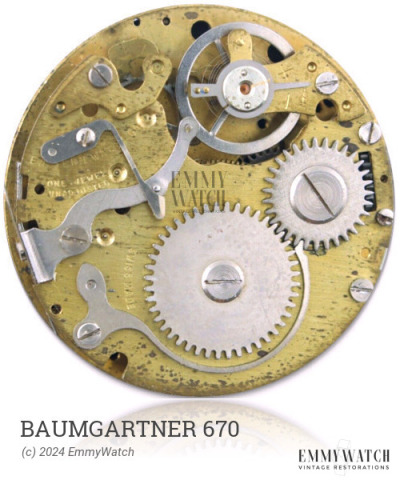

The Baumgartner 670 watch movement, manufactured around 1965, features a manual wind mechanism and a sub-second function. The movements within this series display similar appearances and have a height (H) of 3.0mm. Variations in balances and calibre designations exist, but the distinctions are minor enough to allow for interchanging of parts.
The Baumgartner 670 features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 143 | Ordinary/None | Buy staff |
| 262 | Incabloc | Buy staff |
| 4956 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring | |
| 1.60 x 0.080 x 260 x 7.0 mm | GR4446 | Manual | Buy mainspring |
| 1.60 x 0.080 x 240 x 7.0 mm | GR4445 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More |
Documents
Parts Listing
