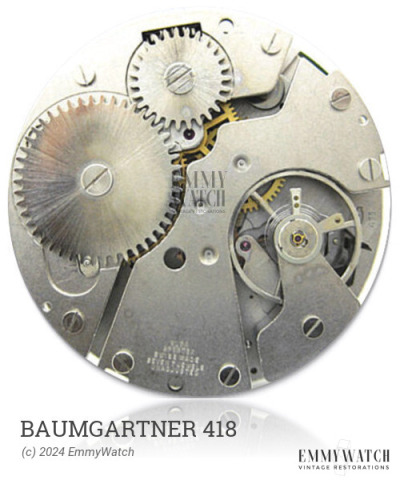

Baumgartner 418
Ligne: 11.5'''
Jewels: 0/1
Lift Angle: 52°
Power Reserve: 32 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Diameter: 25.94 mm
Hands: 1.80 x 1.10 x 0.18 mm
The Baumgartner 418 watch movement features a pin-lever escapement and an indirect minute hand friction clutch on the barrel. Modifications have been made to the balance cock and crown wheel over time. The movement offers manual winding capability and incorporates functions such as a date display and calendar. It was commonly used during the period of approximately 1965.
The Baumgartner 418 features the following functions:
- Calendar
- Date
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.110 x 300 x 9.0 mm | GR4149 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| MAINSPRING 1.50-.11-300 9 | MS-610K | GR 4149 | Buy part |
| STAFF, DOUBLE HUB SLD .79 | 100/1156 | Buy part | |
| STEM | 200/238F | Buy part |
