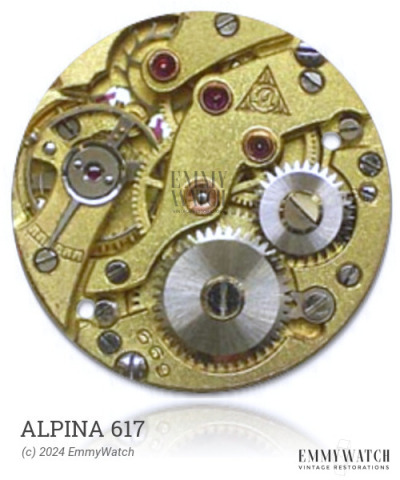

Alpina 617
(Alpina Straub)
Ligne: 12'''
Jewels: 6/15
Power Reserve: 44 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 27.1 mm
Height: 3.9 mm
Hands: 1.50 x 0.95 / 0.18 mm
The Alpina 617 watch movement, also known as the hunter calibre, shares similarities with the 236 movement, but the specific differences are not known. The movement features a stem wind and set function, as well as a sub second display. It is designed for right setting, although further details are not provided.
The Alpina 617 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.55 x 0.110 x 350 x 10.5 mm | Manual | Buy mainspring | |
| 1.50 x 0.110 x 340 x 10.0 mm | GR4151 | Manual | Buy mainspring |
| 1.45 x 0.110 x 360 x 10.5 mm | GR3985 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
