A. Schild 990
(AS, A Schild)
Ligne: 8.75'''
Jewels: 17
Power Reserve: 50 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: 1972-
Diameter: 19.7 mm
Height: 4.0 mm
Hands: 1.30 x 0.80 x 0.20 mm
Base: A. Schild 5100

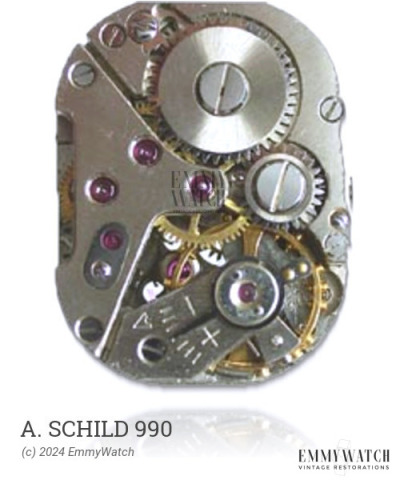

The A. Schild 990 watch movement, introduced in 1972, features an indirectly driven minute hand mechanism, enabling a large balance wheel and a low profile design. This movement incorporates manual winding and a sweep second function.
The A. Schild 990 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.080 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
