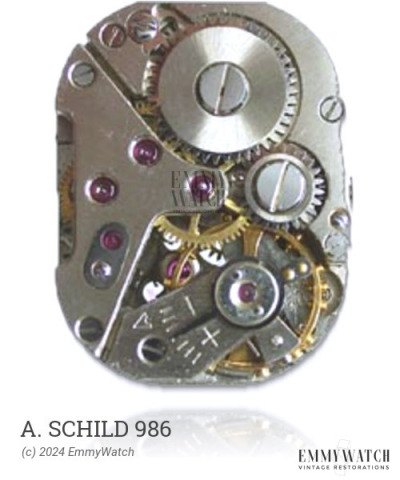

A. Schild 986
(AS, A Schild)
Ligne: 11.5'''
Jewels: 171
Frequency: 21600 vph
Type: Manual Wind
Period used: 1970-1975
Diameter: 26 mm
Height: 5.0 mm
The A. Schild 986 watch movement, used from 1970 to 1975, features an indirectly driven minute, enabling a larger balance and a low-profile design. This manual wind movement includes a digital display for both minutes and jumping hours, as well as a date function that is set by changing the 19:30-24h position. Additionally, the movement incorporates a digital display and a calendar feature.
The A. Schild 986 features the following functions:
- Calendar
- Date: set by changing 19:30-24h
- Digital display: minute, jumping hour
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.00 x 0.105 x 340 x 9.5 mm | GR2451 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
