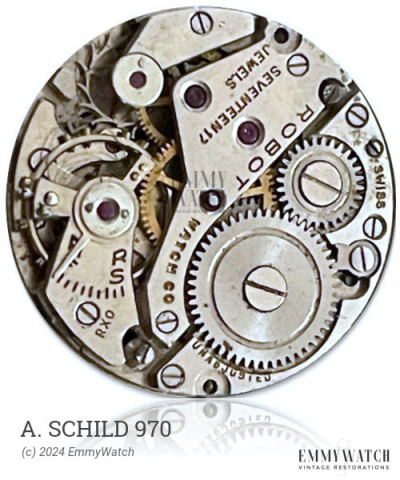

A. Schild 970
(AS, A Schild)
Ligne: 5.75 x 8.5'''
Jewels: 15
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Size: 12.85 x 19.55 mm
Height: 3.6 mm
Hands: 1.00 x 0.55 mm
Base: A. Schild 1051
The A. Schild 970 watch movement is a manual wind movement that was used approximately in the year 1945.
The A. Schild 970 features the following functions:
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.075 x 280 x 7.5 mm | GR4069 | Manual | Buy mainspring |
| 1.50 x 0.070 x 280 x 7.5 mm | Manual | Buy mainspring | |
| 1.50 x 0.080 x 240 x 7.0 mm | GR4076 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| BALANCE COMPLETE INCA | 721/738 | 722/AS 1051 | Buy part |
| MAINSPRING 1.50-.08-240 7 | MS-613E | GR 4076 | Buy part |
