A. Schild 934
(AS, A Schild)
Ligne: 11.5'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Diameter: 26 mm
Height: 3.5 mm
Hands: 1.30 x 0.80 / 0.20 mm

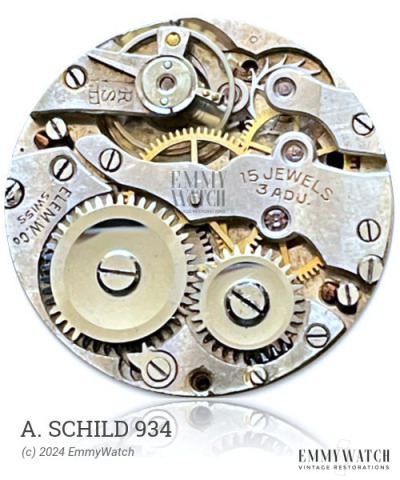

The A. Schild 934 watch movement is a manual wind mechanical movement with sub-seconds. It shares similarities with the 815 movement, with the differences not being fully documented. This movement was commonly used in watches produced around 1965.
The A. Schild 934 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.100 x 340 x 9.5 mm | GR3666 | Manual | Buy mainspring |
| 1.40 x 0.105 x 320 x 9.5 mm | GR3681 | Manual | Buy mainspring |
| 1.40 x 0.100 x 315 x 9.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
