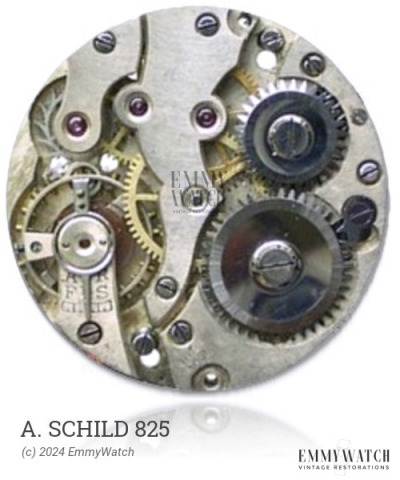

A. Schild 825
(AS, A Schild)
Ligne: 19'''
Jewels: 15
Power Reserve: 37 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1920
Diameter: 43.1 mm
Height: 5.2 mm
Hands: 2.00 x 1.08 / 0.30 mm
The A. Schild 825 watch movement is an open face calibre from around the 1920s. It features a bimetallic screw balance and is equipped with a Breguet hairspring. Additionally, it offers the functions of stem winding and setting, as well as a sub-second display. The movement also has an optional clearance-free fine regulation gear.
The A. Schild 825 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.90 x 0.220 x 540 x 17.0 mm | GR5690 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
