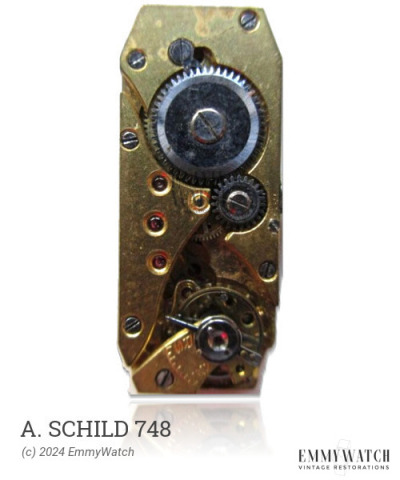

A. Schild 748
(AS, A Schild)
Ligne: 13'''
Power Reserve: 35 hrs
Frequency: 17280 vph
Type: Manual Wind
Period used: ~1950
Diameter: 29.3 mm
Hands: 1.99 x 1.42 mm
The A. Schild 748 watch movement is a manual wind movement that features a pin-lever escapement. It includes a sweep second function and a date complication. The movement also incorporates an indirect minute hand friction clutch on the barrel. The A. Schild 748 was produced around the 1950s.
The A. Schild 748 features the following functions:
- Date
- Manual Winding
- Pin lever
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 330 | Ordinary/None | Buy staff |
| 3419 | Ordinary/None | Buy staff |
| 328 | Ordinary/None | Buy staff |
| 3333 | Kif | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.155 x 580 x 15.0 mm | GR4276 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
