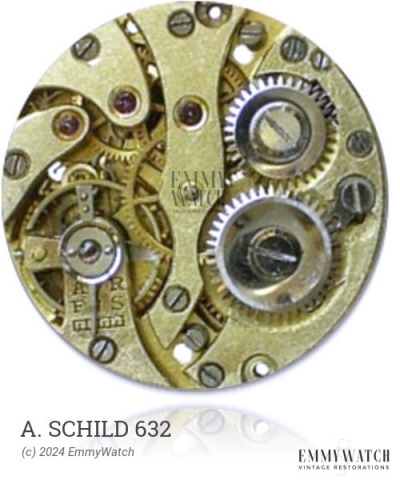

A. Schild 632
(AS, A Schild)
Ligne: 17.75'''
Jewels: 15
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Diameter: 40 mm
Height: 4.45 mm
Hands: 1.60 x 0.81 / 0.18 mm
The A. Schild 632 watch movement is a stem wind and set mechanism, featuring a sub second function. It also includes a date display feature. This movement was commonly used in watches manufactured around the 1950s.
The A. Schild 632 features the following functions:
- Date
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.10 x 0.105 x 320 x 9.5 mm | GR2626DBH | DBH | Buy mainspring |
| 1.00 x 0.190 x 420 x 15.0 mm | GR2511 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| CLUTCH | 407/LEC 429 | Buy part | |
| MAINSPRING 1.10-.105-320 9,5 | MSS-WC4 | GR 2626-DBH | Buy part |
| PALLET ARBOR | 72S/233P | 714/VC 439 | Buy part |
| ROLLER/ROLLER INC | 82S/240R | Buy part | |
| STAFF | 100/1198 | Buy part | |
| STEM | 200/1294F | Buy part |
