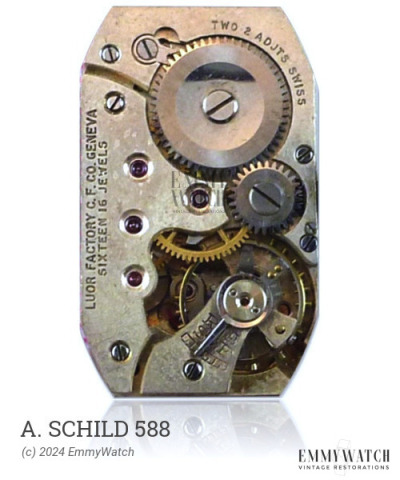

A. Schild 588
(AS, A Schild)
Ligne: 10.5'''
Jewels: 17/21
Power Reserve: 37 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 23.75 mm
Height: 3.8 mm
Hands: 1.40 x 0.80 / 0.20 mm
The A. Schild 588 watch movement features a base plate that may be either flat or bevelled. Limited information is available regarding the differences between the Judex 120, 121, 122, and 123 movements. The A. Schild 588 movement is a manual wind movement with a sub-second function. It was commonly utilized in watch manufacturing during the approximate period of 1955.
The A. Schild 588 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.110 x 260 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
